MSG-3

RAM Commander MSG-3 module is used by aircraft manufacturers or aircraft operators (airlines) to perform aircraft Scheduled Maintenance Development analysis according to Air Transport Association (ATA) Maintenance Steering Group 3 (MSG-3) document.

According to ATA, the ATA MSG-3 publication outlines a decision-logic process for determining initial scheduled maintenance requirements for new aircraft and/or power plants. This document presents a means for developing maintenance tasks and intervals acceptable to regulatory authorities, operators and manufacturers. The analysis has the objective to maintain an inherent safety level and to achieve an optimal balance between maintenance costs and reliability.

RAM Commander's MSG-3 module main features:

  • Intuitive step-by-step procedure
  • Integration with Reliability and FMECA analysis modules
  • Interactive decision diagrams
  • Final report generation is MS Word
  • Customizable MS Word report template


The MSG-3 module is integrated with RAM Commander Reliability and FMECA modules. It divides the procedure into 7 steps including system definition, maintenance significant items selection, failure effect categorization, task selection and development and report generation.

MSG-3

It brings user through the decision-making process using interactive decision diagrams taken from the standard:
MSG-3 Failure Effect Categorization

As an output of the procedure user gets final report generated in MS-Word with all the data inside. Report is generated based on customizable MS Word template; user may change the template design.

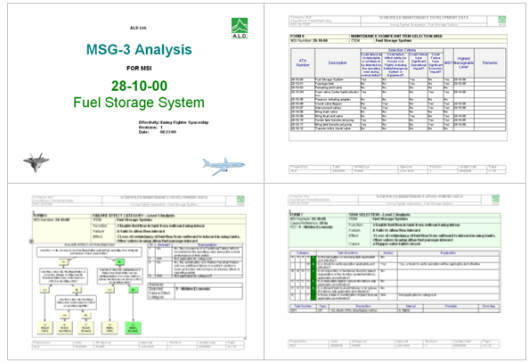

MSG-3 Sample Report

You may download and review the full sample MSG-3 report generated by RAM Commander.


Functional Packages:
PREDICTOR

  • 5 Standard Operating Reliability Prediction Methods
  • BOM Builder, Temperature Curves, Mission Profile, and Import Wizard
  • Full set of ready-to-print Reliability Reports
  • Enhanced Report Generator for user defined reports

RELIABILITY PRO

  • 5 Standard Operating Reliability Prediction Methods
  • BOM Builder, Temperature Curves, Mission Profile, and  Import Wizard
  • User Defined Components Reliability Data Module
  • Full set of ready-to-print Reliability Reports
  • Enhanced Report Generator for user defined reports
  • Components Library Module (over 400k components)
  • RBD - Reliability Block Diagram

MAINTAINABILITY PRO

  • Maintainability Module (according to MIL-STD-472 Procedure 5A)
  • Built in libraries for Tasks, Times, STE, Skills, and Materials
  • Maintenance Engineering Report (MEA Report)
  • Maintenance Task Analysis Report
  • Full set of ready-to-print Reliability Reports
  • ILS Supprt Fields (user defined)
  • BOM Builder, Temperature Curves, Mission Profile & Import Wizard
  • Enhanced Report Generator for user defined reports
  • RCM/MSG-3 Module
  • FMECA Module

FAILURE ANALYSIS & ISOLATION

  • BOM Builder, and Import Wizard
  • FMECA (covering both Hardware & Functional) Module
  • Customizable FMECA Worksheet
  • FTA Module
  • FMECA Import/Export
  • Testability Module
  • Full set of FMECA & FTA ready-to-print Reports
  • Full set of ready-to-print Testability Reports including graphical trouble shooting, fault isolation, etc.
  • FMD-97 Library
  • Enhanced Report Generator for user defined reports

SAFETY ASSESSMENT

  • SSA supporting IEC 61508 (Safety Standard for Safety Instrumented Systems) and MIL-STD-882D (SHA, O&SHA), SAE, ARP 4754A, and ARP4761
  • Customizable FMECA Worksheet
  • FTA Module
  • RBD Module
  • Markov Chains Module
  • FMECA Import/Export
  • Full set of ready-to-print Safety Reports
  • Enhanced Report Generator for user defined reports

AVIATION SAFETY

  • SSA & FHA according to SAE, ARP 4754A, ARP4761, and FAR 25 1309b
  • FTA including ready-to print reports
  • MSG-3 (System, Zonal, and Structural) including ready-to-print reports
  • MMEL including ready-to-print 5-column report
  • FMECA including ready-to-print FMECA reports, BOM Builder, and Import Wizard
  • Enhanced Report Generator for user defined reports
  • Report Template Utility for layout customization

Download the latest version of RAM Commander V8.2 (November 2011)
