Maintainability Analysis / RCM

Download the latest version of RAM Commander V8.2 (November 2011)
Maintainability Prediction and Analysis in RAM Commander is based on the MIL-HDBK-472, Procedure V, Method A. Maintainability module is used to predict maintainability of systems and equipment of any type, including avionics, ground and shipboard electronics, mechanical equipment, etc., at all levels of maintenance.

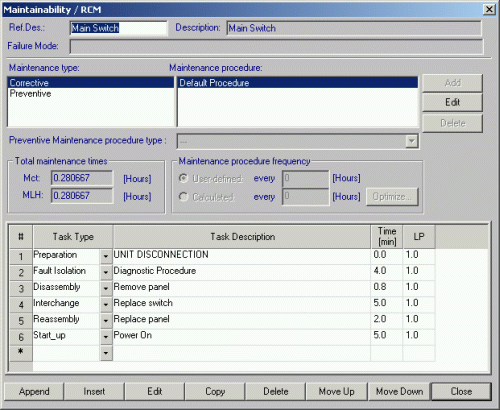

Maintenance Procedure Definition
Maintainability procedure definition

Maintainability Module Features

  • 5 customizable levels of Repair and Replace for tree elements

  • Corrective Maintenance procedure per element or Failure Mode

  • Preventive Maintenance procedures per element or Failure Mode

  • Preventive Maintenance procedure frequency optimization

  • Standard Times and Standard Tasks libraries

  • List of required skills, equipment and materials for each task

  • Skills, Equipment and Materials Libraries

  • RCM (Reliability-Centered Maintenance)

  • A wide range of reports for Maintainability Analysis

  • Required skills, materials and equipment calculation


Maintenance Engineering Analysis Report
Maintenance Engineering Analysis report

Functional Packages:
PREDICTOR

  • 5 Standard Operating Reliability Prediction Methods
  • BOM Builder, Temperature Curves, Mission Profile, and Import Wizard
  • Full set of ready-to-print Reliability Reports
  • Enhanced Report Generator for user defined reports

RELIABILITY PRO

  • 5 Standard Operating Reliability Prediction Methods
  • BOM Builder, Temperature Curves, Mission Profile, and  Import Wizard
  • User Defined Components Reliability Data Module
  • Full set of ready-to-print Reliability Reports
  • Enhanced Report Generator for user defined reports
  • Components Library Module (over 400k components)
  • RBD - Reliability Block Diagram

MAINTAINABILITY PRO

  • Maintainability Module (according to MIL-STD-472 Procedure 5A)
  • Built in libraries for Tasks, Times, STE, Skills, and Materials
  • Maintenance Engineering Report (MEA Report)
  • Maintenance Task Analysis Report
  • Full set of ready-to-print Reliability Reports
  • ILS Supprt Fields (user defined)
  • BOM Builder, Temperature Curves, Mission Profile & Import Wizard
  • Enhanced Report Generator for user defined reports
  • RCM/MSG-3 Module
  • FMECA Module

FAILURE ANALYSIS & ISOLATION

  • BOM Builder, and Import Wizard
  • FMECA (covering both Hardware & Functional) Module
  • Customizable FMECA Worksheet
  • FTA Module
  • FMECA Import/Export
  • Testability Module
  • Full set of FMECA & FTA ready-to-print Reports
  • Full set of ready-to-print Testability Reports including graphical trouble shooting, fault isolation, etc.
  • FMD-97 Library
  • Enhanced Report Generator for user defined reports

SAFETY ASSESSMENT

  • SSA supporting IEC 61508 (Safety Standard for Safety Instrumented Systems) and MIL-STD-882D (SHA, O&SHA), SAE, ARP 4754A, and ARP4761
  • Customizable FMECA Worksheet
  • FTA Module
  • RBD Module
  • Markov Chains Module
  • FMECA Import/Export
  • Full set of ready-to-print Safety Reports
  • Enhanced Report Generator for user defined reports

AVIATION SAFETY

  • SSA & FHA according to SAE, ARP 4754A, ARP4761, and FAR 25 1309b
  • FTA including ready-to print reports
  • MSG-3 (System, Zonal, and Structural) including ready-to-print reports
  • MMEL including ready-to-print 5-column report
  • FMECA including ready-to-print FMECA reports, BOM Builder, and Import Wizard
  • Enhanced Report Generator for user defined reports
  • Report Template Utility for layout customization


Download the latest version of RAM Commander V8.2 (November 2011)
